TPE/TPS H Series(SEBS) - H Class
The material is transparent with high physical properties, great cold resistance and good tear resistance.
It is suitable for applications with extreme requirements, such as the straps, used in packaging, bundling and transport, which makes the products more secure on the packaging because of superior tensile strength. On the other items, such as chest fitness strap, that has the extraordinary resilient force and anti-aging to make the exercisers easily achieving the body-building.
Excellent physical properties, with the following features :
Weather resistant
Aging resistant
Softnes
Combines well with colors
Scratch resistant
Dust resistant
Good ductility
Product Specification :
- Hardness : SHORE 5A ~ 45D

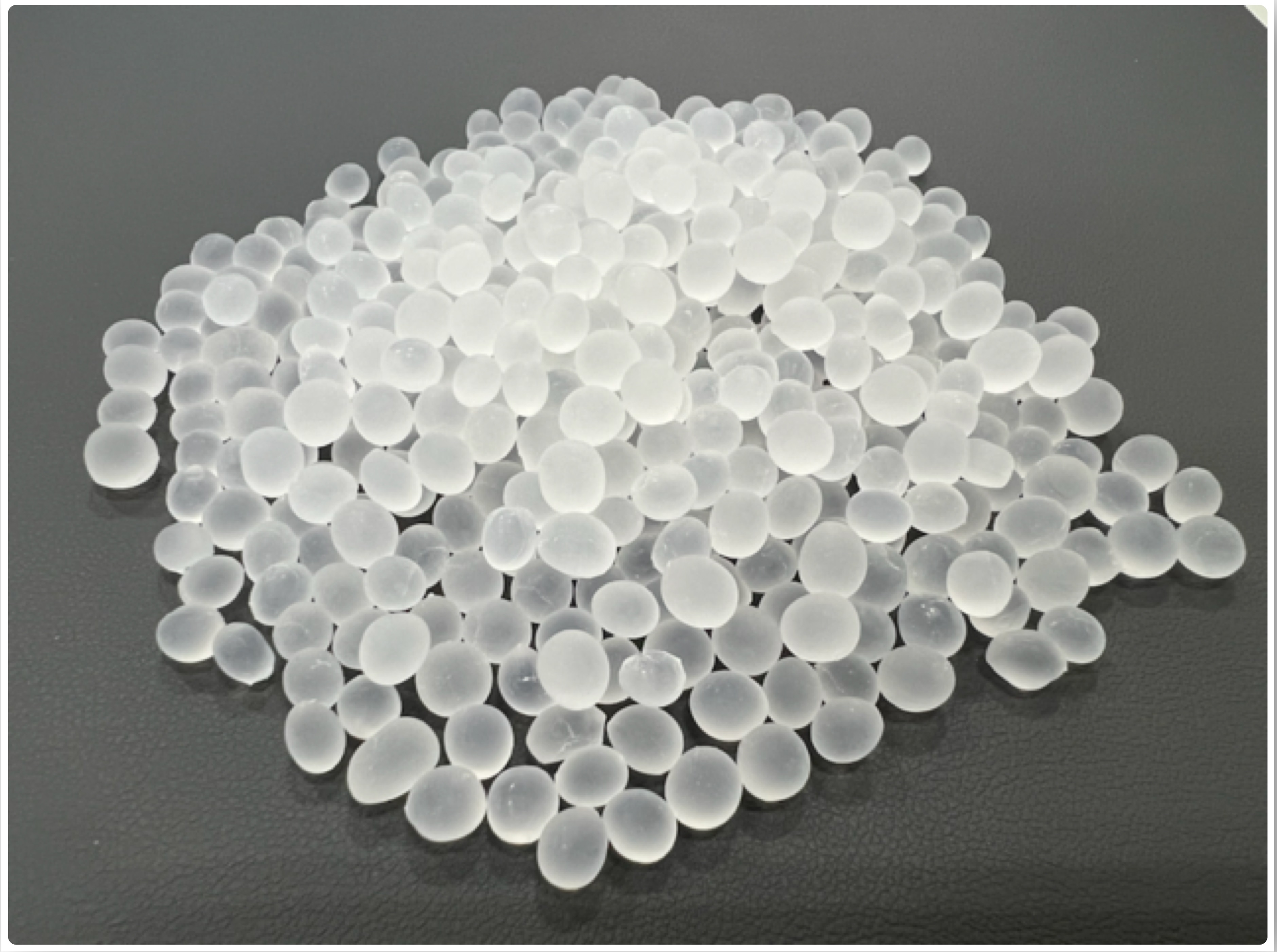

- Exterior : Particles
- Color : Translucent / Customized Color
Packing: 25 KGS/ Kraft Bag
- The optimum combination of materials :PP、PE、EVA
- Heat distortion temperature :70ﾟC
- Cold resistance temperature :-40ﾟC
- Processing Method :Injection, Extrusion
- Storage conditions :At room temperature, avoid direct sunlight, keep away from fire and avoid humid environment.
- Incoterms :FOB,CIF Term...etc.
- Delivery time :7 to 10 working days upon payment.
Applications:
Elastic band, non-slip shoe covers
| Material Class: H Class |
|||||||
|---|---|---|---|---|---|---|---|
| ITEM | TEST METHOD | SERIES | UNIT | ||||
| H-380H | H-400H | H-600H | H-650H | H-700H | |||
| HARDNESS | ASTM D2240 | 38A | 40A | 60A | 65A | 74A | SHORE A |
| SPECIFIC GRAVITY | ASTM D792 | 0.89 | 0.88 | 0.88 | 0.88 | 0.88 | G/CM3 |
| ELONGATION | ASTM 412C | 700 | 885 | 615 | 490 | 730 | % |
| TENSILE STRENGTH | ASTM 412C | 45 | 47 | 61 | 55 | 105 | KG/CM2 |
| TEAR STRENGTH | ASTM 624C | 25 | 28 | 42 | 38 | 44 | KG/CM |
| MELT FLOW INDEX | ASTM D1238 | 30G | 23G | 12G | 3G | 5G | G/10 MIN |
| Melt Flow Index | B：125ﾟC / 2.16KGS C：150ﾟC / 2.16KGS E：190ﾟC / 2.16KGS G：200ﾟC / 5KGS |
||||||
| ※ Above information is for reference only. | |||||||
| GENERAL PROCESSING CONDITIONS | |||||
|---|---|---|---|---|---|
| BARREL TEMPERATURE | REAR | CENTER | FRONT | NOZZLE | MOLD TEMPERATURE |
| 160ﾟC~177ﾟC | 166ﾟC~182ﾟC | 177ﾟC~191ﾟC | 182ﾟC~204ﾟC | 16ﾟC~66ﾟC | |
| (Mpa) INJECTION PRESSURE | (Mpa) INJECTION PRESSURE |
(Mpa) HOLD PRESSURE |
(Mpa) BACK PRESSURE |
(mm/sec.) INJECTION SPEED | (rpm) SCREW SPEED |
| 34~69 | 14~48 | 0.34~0.69 | 13~25 | 50~70 | |
| ※ Above information is for reference only. | |||||
